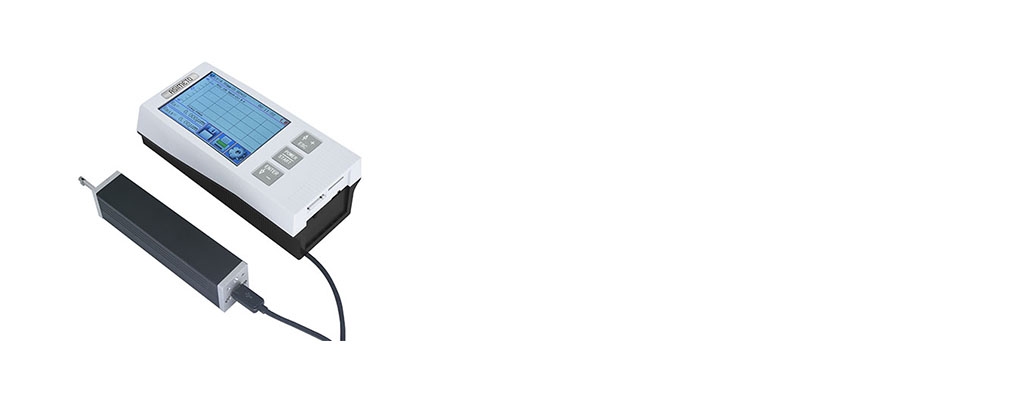

Series 645

FEATURES

  • 3.5-inch color graphic touch screen, provide high brightness, wide viewing angle.
  • Display full information, intuitive and graphical displays all parameters.
  • DSP chip control and data processing, high speed, low power consumption.
  • 4 profile filter: Gauss RC PC-RC D-P.
  • Multi parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rc, Ry, Rmax, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2.
  • Complies with the following standards: ISO, DIN, ANSI, JIS
  • Support Bluetooth printer and mobile APP wireless operation.
  • Large capacity data storage, can store 100 item of raw data and measured profile.
  • With automatic sleep, automatic shutdown power-saving features.
  • Can connected to the computer and printer.
  • Optional accessories include curved surface sensor, deep groove sensor, small hole sensor, measurement stand, Sleeve of sensor, printer and analysis software.

PRODUCT SPECIFICATIONS

Code No.
645-13-0
Measuring range X axis: 17.5mm / 0.69"
Measuring range Z axis: 320μm (-160μm - 160μm) / 12600μin (-6300μin - 6300μin)
Sampling length 0.25, 0.8, 2.5mm
Measuring speed 0.135, 0.5, 1mm/s, 1mm/s (return)
Measuring force 4mN
Stylus tip Diamond, 90° / 5μmR tip radius
Size Control unit: 160x64x53mm
Size Drive unit: 115x23x27mm
Power supply Built-in 3200mAh rechargeable Lithium ion battery; AC Adapter
Language
