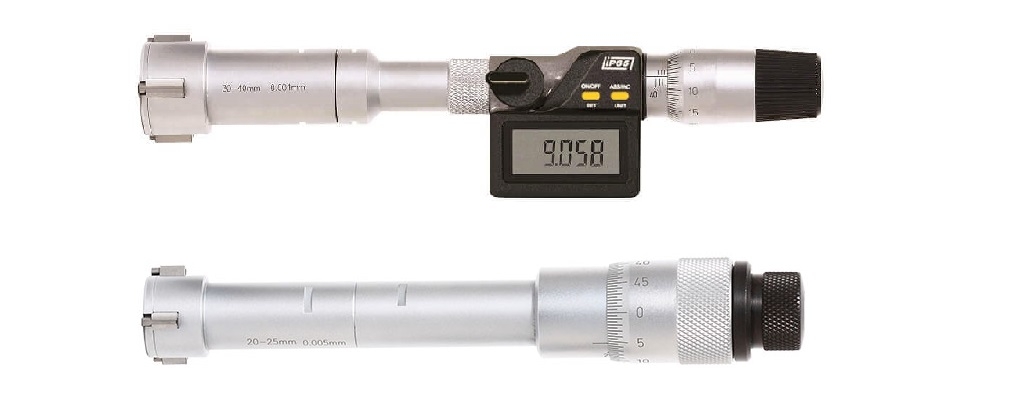

Three-Point Internal Micrometers (12-100mm / .5-4.0")

Series 208 / 209
Three-Point Internal Micrometers (12-100mm / .5-4.0")
  • Three-Point Internal Micrometers (12-100mm / .5-4.0")

FEATURES

  • Resolution:
    Digital models: .00005" / 0.001mm
    Mechanical models: .0002" / 0.005mm
  • Digital models: Protection level IP65
  • Setting ring supplied
  • Measuring contact points are designed to allow measurements near to the bottom of blind holes
  • Additional extensions can be added to increase the measuring depth
  • Measuring surfaces are carbide
  • Digital models support Bluetooth data transmission
    Bluetooth data output: 901-01-5
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyRod LengthExtension RodCode No.
.5-.65" / 12-16mm ± .0001" 80mm 150mm 208-24-1
.65-.8" / 16-20mm ± .0001" 80mm 150mm 208-25-1
.8-1" / 20-25mm ± .0001" 90mm 150mm 208-26-1
1-1.2" / 25-30mm ± .0002" 90mm 150mm 208-27-1
1.2-.1.6" / 30-40mm ± .0002" 97mm 150mm 208-28-1
1.6-2" / 40-50mm ± .0002" 97mm 150mm 208-29-1
2-2.5" / 50-63mm ± .0002" 114mm 150mm 208-30-1
2.5-3" / 62-75mm ± .0002" 114mm 150mm 208-31-1
3-3.5" / 75-88mm ± .0002" 114mm 150mm 208-32-1
3.5-4" / 87-100mm ± .0002" 114mm 150mm 208-33-1
RangeAccuracyRod LengthExtension RodCode No.
12-16mm / .5-.65" 0.004mm 80mm 150mm 208-24-0
16-20mm / .65-.8" 0.004mm 80mm 150mm 208-25-0
20-25mm / .8-1" 0.004mm 90mm 150mm 208-26-0
25-30mm / 1-1.2" 0.004mm 90mm 150mm 208-27-0
30-40mm / 1.2-.1.6" 0.004mm 97mm 150mm 208-28-0
40-50mm / 1.6-2" 0.005mm 97mm 150mm 208-29-0
50-63mm / 2-2.5" 0.005mm 114mm 150mm 208-30-0
62-75mm / 2.5-3" 0.005mm 114mm 150mm 208-31-0
75-88mm / 3-3.5" 0.005mm 114mm 150mm 208-32-0
87-100mm / 3.5-4" 0.005mm 114mm 150mm 208-33-0
RangeAccuracyRod LengthExtension RodCode No.
.5-.65" ± .0001" 80mm 150mm 209-24-1
.65-.8" ± .0001" 80mm 150mm 209-25-1
.8-1" ± .0001" 90mm 150mm 209-26-1
1-1.2" ± .0002" 90mm 150mm 209-27-1
1.2-.1.6" ± .0002" 97mm 150mm 209-28-1
1.6-2" ± .0002" 97mm 150mm 209-29-1
2-2.5" ± .0002" 114mm 150mm 209-30-1
2.5-3" ± .0002" 114mm 150mm 209-31-1
3-3.5" ± .0002" 114mm 150mm 209-32-1
3.5-4" ± .0002" 114mm 150mm 209-33-1
RangeAccuracyRod LengthExtension RodCode No.
12-16mm 0.004mm 80mm 150mm 209-24-0
16-20mm 0.004mm 80mm 150mm 209-25-0
20-25mm 0.004mm 90mm 150mm 209-26-0
25-30mm 0.004mm 90mm 150mm 209-27-0
30-40mm 0.004mm 97mm 150mm 209-28-0
40-50mm 0.004mm 97mm 150mm 209-29-0
50-63mm 0.005mm 114mm 150mm 209-30-0
62-75mm 0.005mm 114mm 150mm 209-31-0
75-88mm 0.005mm 114mm 150mm 209-32-0
87-100mm 0.005mm 114mm 150mm 209-33-0
