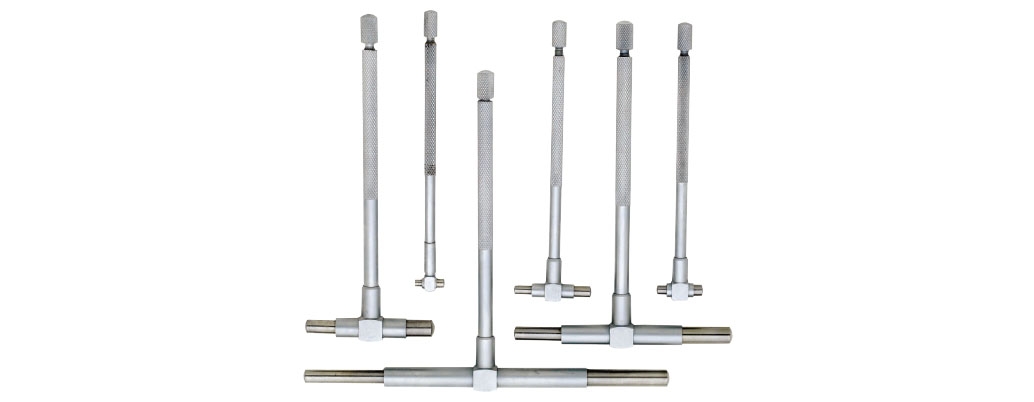

Telescoping Gauges

Series 487
Telescoping Gauges
  • Telescoping Gauges

FEATURES

  • Spring-loaded plunger expands within the bore (or groove), allowing determination of the internal diameter.
  • With a knurled clamp.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
SETSRangeCode No.
6 pcs (A, B, C, D, E, F) 5/16"-6"
8-150mm		 487-86-9
5 pcs (B, C, D, E, F) 1/2"-6"
12.7-150mm		 487-85-9
ModelRangeDepthCode No.
A 5/16" - 1/2"
8-12.7mm		 4.2"/107mm 487-01-1
B 1/2" - 3/4"
12.7-19mm		 4.4"/112mm 487-02-1
C 3/4" - 1-1/4"
19-32mm		 4.4"/112mm 487-03-1
D 1-1/4" - 2-1/8"
32-54mm		 5.85"/150mm 487-04-1
E 2-1/8" - 3-1/2"
54-90mm		 5.85"/150mm 487-05-1
F 3-1/2" - 6"
90-150mm		 5.85"/150mm 487-06-1
A 5/16" - 1/2"
8-12.7mm		 12"/300mm 487-01-3
B 1/2" - 3/4"
12.7-19mm		 12"/300mm 487-02-3
C 3/4" - 1-1/4"
19-32mm		 12"/300mm 487-03-3
D 1-1/4" - 2-1/8"
32-54mm		 12"/300mm 487-04-3
E 2-1/8" - 3-1/2"
54-90mm		 12"/300mm 487-05-3
F 3-1/2" - 6"
90-150mm		 12"/300mm 487-06-3
ModelRangeDepthCode No.
A 5/16" - 1/2"
8-12.7mm		 4.2"/107mm 487-01-1
B 1/2" - 3/4"
12.7-19mm		 4.4"/112mm 487-02-1
C 3/4" - 1-1/4"
19-32mm		 4.4"/112mm 487-03-1
D 1-1/4" - 2-1/8"
32-54mm		 5.85"/150mm 487-04-1
E 2-1/8" - 3-1/2"
54-90mm		 5.85"/150mm 487-05-1
F 3-1/2" - 6"
90-150mm		 5.85"/150mm 487-06-1
A 5/16" - 1/2"
8-12.7mm		 12"/300mm 487-01-3
B 1/2" - 3/4"
12.7-19mm		 12"/300mm 487-02-3
C 3/4" - 1-1/4"
19-32mm		 12"/300mm 487-03-3
D 1-1/4" - 2-1/8"
32-54mm		 12"/300mm 487-04-3
E 2-1/8" - 3-1/2"
54-90mm		 12"/300mm 487-05-3
F 3-1/2" - 6"
90-150mm		 12"/300mm 487-06-3
