V-Blocks with Clamp

Series 606
V-Blocks with Clamp
  • V-Blocks with Clamp

FEATURES

  • Made with hardened steel at HRC55-62.
  • With spring clamping bar.
  • Delivered in pairs
  • Accuracy:
    Parallelism & Squareness: 0.005mm
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
DimensionFor Shaft Dia.NotesCode No.　

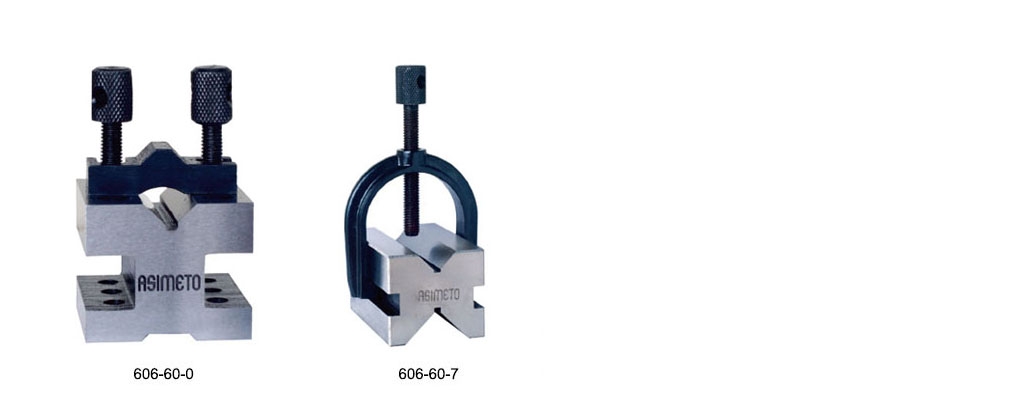

30x35x35mm 25mm Plain Clamp 606-60-0
60x60x50mm 155mm Plain Clamp 606-61-0
105x105x78mm 100mm Plain Clamp 606-62-0
40x35x35mm 25mm Deep Throat Clamp 606-60-6
70x45x41mm 40mm Deep Throat Clamp 606-60-2
70x63x44mm 40mm Deep Throat Clamp 606-60-4
