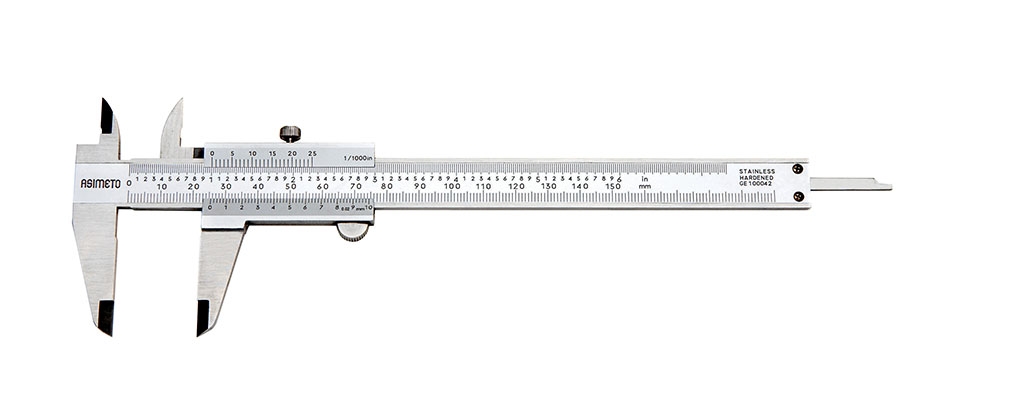

Venier Calipers (Mono Block)

Series 341
Venier Calipers (Mono Block)
  • Venier Calipers (Mono Block)

FEATURES

Mono Block
  • Graduation:
    Inch: .001"
    Metric: 0.02mm or 0.05mm
  • Various models available with an assortment of dual scales
  • Measuring surfaces allow for the measurement of external diameters, internal diameters,depths and steps
  • The upper and lower scales on the slider are angled to reduce parallax error
  • Stainless steel with hardened measuring surfaces
  • Models are available with the slider operation in either plain, thumb clamp, fine adjustment
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Range
(Lower/Upper)		Graduation
(Lower/Upper)		AccuracyNotesCode No.
0-6" / 0-6" .001" / 1/128" ± .001" Upper Lock 341-06-1
0-8" / 0-8" .001" / 1/128" ± .001" Upper Lock 341-08-1
Range
(Lower/Upper)		Graduation
(Lower/Upper)		AccuracyNotesCode No.
0-150mm / 0-6" 0.05mm / 1/128" ± 0.05mm Upper Lock 341-06-0
0-150mm / 0-6" 0.05mm / 1/128" ± 0.05mm Lower Locking
Screw		 341-66-0
0-200mm / 0-8" 0.05mm / 1/128" ± 0.05mm Upper Lock 341-08-0
0-300mm / 0-12" 0.05mm / 1/128" ± 0.05mm Upper Lock 341-12-0
0-150mm / 0-6" 0.02mm / 0.001" ± 0.03mm Upper Lock 341-06-4
0-200mm / 0-8" 0.02mm / 0.001" ± 0.03mm Upper Lock 341-08-4
0-300mm / 0-12" 0.02mm / 0.001" ± 0.04mm Upper Lock 341-12-4
