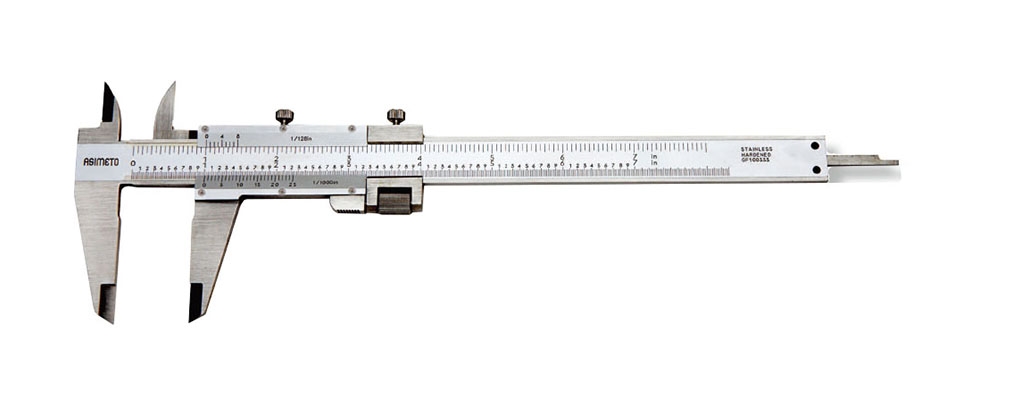

Vernier Calipers With Fine Adjustment

Series 363
Vernier Calipers With Fine Adjustment
  • Vernier Calipers With Fine Adjustment

FEATURES

Open Block, Fine Adjustment
  • Graduation:
    Inch: .001"
    Metric: 0.02mm
  • Various models available with an assortment of dual scales
  • Measuring surfaces allow for the measurement of external diameters, internal diameters, depths and steps
  • The upper and lower scales on the slider are angled to reduce parallax error
  • Stainless steel with hardened measuring surfaces
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Range
(Lower/Upper)		Graduation
(Lower/Upper)		AccuracyNotesCode No.
0-5" / 0-5" .001" / 1/128" ± .001" Upper Lock 363-05-1
0-7" / 0-7" .001" / 1/128" ± .0015" Upper Lock 363-07-1
0-11" / 0-11" .001" / 1/128" ± .0015" Upper Lock 363-11-1
Range
(Lower/Upper)		Graduation
(Lower/Upper)		AccuracyNotesCode No.
0-130mm / 0-5" 0.02mm / 0.001" ± 0.03mm Upper Lock 363-05-6
0-180mm / 0-6" 0.02mm / 0.001" ± 0.03mm Upper Lock 363-07-6
0-280mm / 0-11" 0.02mm / 0.001" ± 0.04mm Upper Lock 363-11-6
