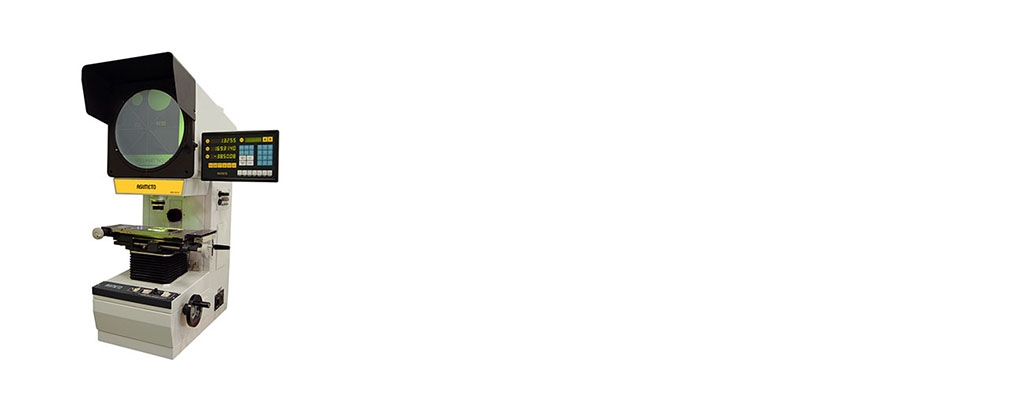

Series 641

FEATURES

  • Used to inspect the profiles of a wide variety of parts and components
  • Designed to proved an excellent quality image with accurate  magnification
  • The error of the contour measuring is under 0.08% deviation
  • A convenient foot switch transfers the coordinate data to the data  processing system
  • Provides the data processing system and foot-switch,  which are convenient to output and gather the data

STANDARD ACCESSORIES

  • Main body                                                 1 pc
  • Lens                                                           1 pc
  • Corresponding semi-reflective          1 pc
    (Equipped With the Lens)
  • Spring fixture of screen                      4 pcs
  • 2m Power wire                                         1 pc
  • Instruction manual                                 1 pc
  • Certification                                             1 pc
  • Packaging list                                          1 pc
  • 4A/5 x 20 Fuse                                        5 pcs
  • 24V 150W Halogen bulb                        2 pcs

PRODUCT SPECIFICATIONS

Stage Size
(mm)
Glass Table Size
(mm)
X-Y-Z Axis Travel
(mm)
ImageWeight (kg)Code No.
340x152 196x96 150x50x90 Obverse 130 641-01-0
340x152 196x96 150x50x90 Reverse 130 641-01-1
404x228 260x160 200x100x90 Obverse 160 641-02-0
404x228 260x160 200x100x90 Reverse 160 641-02-1
Stage Size
(mm)
Glass Table Size
(mm)
X-Y-Z Axis Travel
(mm)
ImageWeight (kg)Code No.
340x152 196x96 150x50x90 Obverse 130 641-01-0
340x152 196x96 150x50x90 Reverse 130 641-01-1
404x228 260x160 200x100x90 Obverse 160 641-02-0
404x228 260x160 200x100x90 Reverse 160 641-02-1
DescriptionCode No.
Optional Rotary Table 641-05-0
Optional Swivel Center Support 641-05-1
Optional Edge Detector 641-05-2
