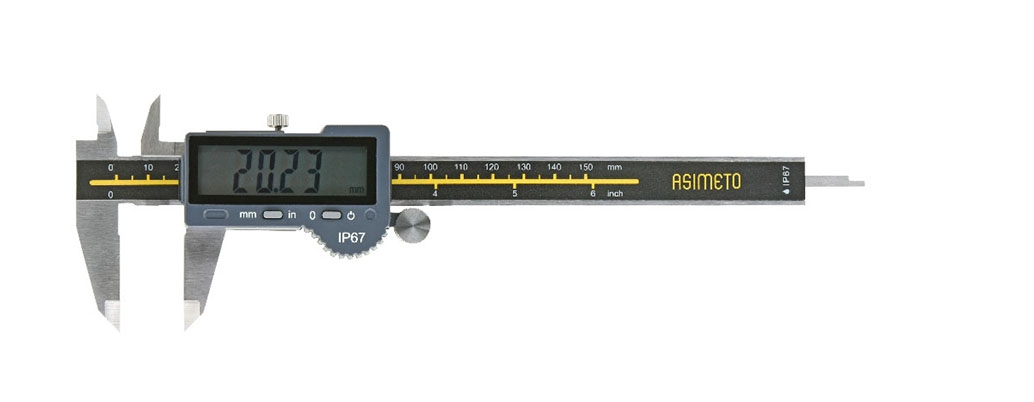

Series 305

FEATURES

  • Resolution: .0005" / 0.01mm
  • Large screen: (53.5 x 15.5mm) LCD display area
  • Auto power off, extend battery life
  • Inch/Metric conversion
  • Memory function: Keep the reading even after the display has been turned off
  • Conforms to the IP67 ratings
  • Easy-to-read intersurfaces


STANDARD ACCESSORIES

  • Battery
  • Warranty card, Calibration certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeAccuracyCode No.
0-6" / 0-150mm ± .001" 305-06-5
0-8" / 0-200mm ± .0015" 305-08-5
0-12" / 0-300mm ± .0015" 305-12-5
RangeAccuracyCode No.
0-150mm / 0-6" ± 0.03mm 305-06-5
0-200mm / 0-8" ± 0.03mm 305-08-5
0-300mm / 0-12" ± 0.03mm 305-12-5
RangeAccuracyCode No.
0-6" / 0-150mm ± .001" 305-06-6
0-8" / 0-200mm ± .0015" 305-08-6
0-12" / 0-300mm ± .0015" 305-12-6
RangeAccuracyCode No.
0-150mm / 0-6" ± 0.03mm 305-06-6
0-200mm / 0-8" ± 0.03mm 305-08-6
0-300mm / 0-12" ± 0.03mm 305-12-6
