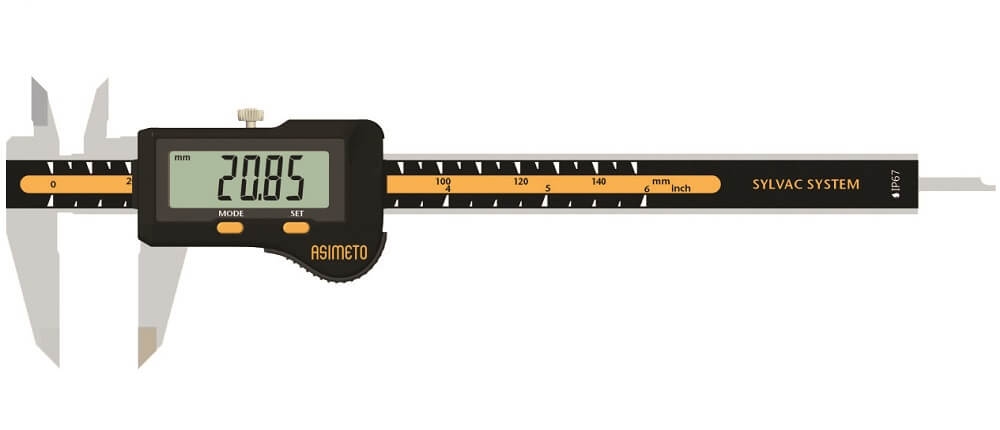

Series 301

FEATURES

  • Resolution: .0005" / 0.01mm
  • Conforms to the IP67 ratings
  • Inch/Metric conversion
  • Auto power On/Off
  • Sylvac system

STANDARD ACCESSORIES

  • Battery
  • Warranty card, Calibration certificate, Instruction manual,

PRODUCT SPECIFICATIONS

RangeAccuracyCode No.Notes
0-6" / 0-150mm ± .001" 301-06-0
0-6" / 0-150mm ± .001" 301-06-2 Round Depth Bar
Φ1.5mm
0-8" / 0-200mm ± .0015" 301-08-0
0-12" / 0-300mm ± .0015" 301-12-0
RangeAccuracyCode No.Notes
0-150mm / 0-6" ± 0.03mm 301-06-0
0-150mm / 0-6" ± 0.03mm 301-06-2 Round Depth Bar
Φ1.5mm
0-200mm / 0-8" ± 0.03mm 301-08-0
0-300mm / 0-12" ± 0.03mm 301-12-0
