Series 400 / 403

FEATURES

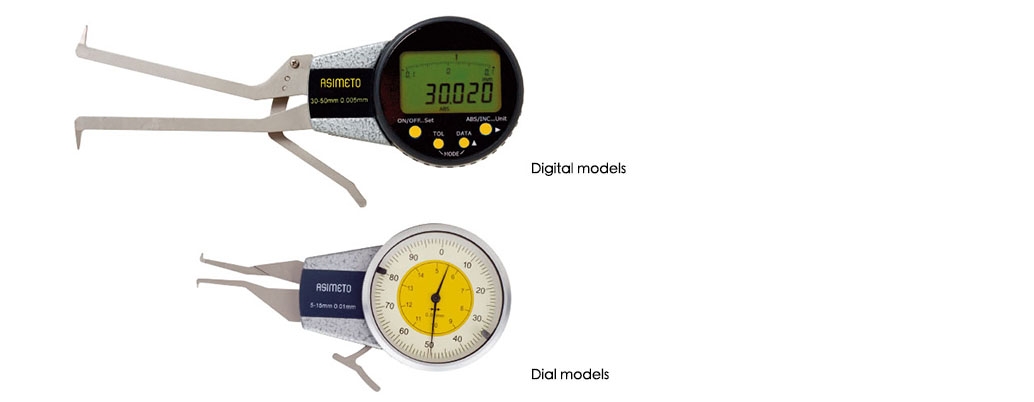

  • Resolution:
    Digital models: .0002" / 0.005mm
    Mechnical models: .0005" / 0.01mm
  • Designed to measure internal grooves, and other intricate detailed internal characteristics
  • This measuring instrument provides comparison readings and must be set to the nominal dimension using either micrometer or setting ring
  • The digital model allows the display housing to be rotated ±170°

STANDARD ACCESSORIES

  • Battery (Digital models)
  • Warranty card, Calibration certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeArm LengthTipped LengthAccuracyCode No.
.2-.6" 20mm 1.5mm ± .0008" 400-11-1
.4-.8" 25mm 3.0mm ± .0008" 400-12-1
.8-1.2" 30mm 6.5mm ± .0008" 400-13-1
1.2-1.6" 30mm 9.0mm ± .0008" 400-14-1
1.6-2.0" 30mm 9.0mm ± .0008" 400-15-1
.2-1.0" 35mm 1.5mm ± .00012" 400-21-1
.4-1.2" 55mm 3.5mm ± .00012" 400-22-1
.8-1.6" 80mm 6.5mm ± .00012" 400-23-1
1.2-2.0" 80mm 8.5mm ± .00012" 400-24-1
1.6-2.4" 80mm 8.5mm ± .00012" 400-25-1
RangeArm LengthTipped LengthAccuracyCode No.
5-15mm 20mm 1.5mm 0.02mm 400-11-0
10-20mm 25mm 3.0mm 0.02mm 400-12-0
20-30mm 30mm 6.5mm 0.02mm 400-13-0
30-40mm 30mm 9.0mm 0.02mm 400-14-0
40-50mm 30mm 9.0mm 0.02mm 400-15-0
5-25mm 35mm 1.5mm 0.03mm 400-21-0
10-30mm 55mm 3.5mm 0.03mm 400-22-0
20-40mm 80mm 6.5mm 0.03mm 400-23-0
30-50mm 80mm 8.5mm 0.03mm 400-24-0
40-60mm 80mm 8.5mm 0.03mm 400-25-0
RangeArm LengthTipped LengthAccuracyCode No.
.2-.6" 20mm 1.5mm ± .0008" 403-11-1
.4-.8" 25mm 3.0mm ± .0008" 403-12-1
.8-1.2" 30mm 6.5mm ± .0008" 403-13-1
1.2-1.6" 30mm 9.0mm ± .0008" 403-14-1
1.6-2.0" 30mm 9.0mm ± .0008" 403-15-1
.2-1.0" 35mm 1.5mm ± .00012" 403-21-1
.4-1.2" 55mm 3.5mm ± .00012" 403-22-1
.8-1.6" 80mm 6.5mm ± .00012" 403-23-1
1.2-2.0" 80mm 8.5mm ± .00012" 403-24-1
1.6-2.4" 80mm 8.5mm ± .00012" 403-25-1
RangeArm LengthTipped LengthAccuracyCode No.
5-15mm 20mm 1.5mm 0.02mm 403-11-0
10-20mm 25mm 3.0mm 0.02mm 403-12-0
20-30mm 30mm 6.5mm 0.02mm 403-13-0
30-40mm 30mm 9.0mm 0.02mm 403-14-0
40-50mm 30mm 9.0mm 0.02mm 403-15-0
5-25mm 35mm 1.5mm 0.03mm 403-21-0
10-30mm 55mm 3.5mm 0.03mm 403-22-0
20-40mm 80mm 6.5mm 0.03mm 403-23-0
30-50mm 80mm 8.5mm 0.03mm 403-24-0
40-60mm 80mm 8.5mm 0.03mm 403-25-0
